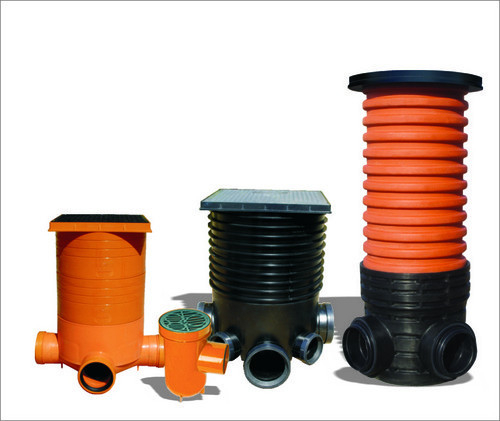

Ultra Inspection Chambers

Following are the different sizes of Ultra Inspection Chambers and Manhole along with cover solution is available in the range.

  • Ultra 250 with and without trap provision with 110mm inlet(s) and outlet. (size of the trap is 75mm)
  • Ultra 315mm with 110mm inlet(s) and outlet is available in seven different flow Profiles/Configuration. Ultra 315mm multiple inlet(s) with 110mm inlets at 45° and two 110mm inlets at 90° with main inlet / outlet in 110mm.
  • Ultra 355mm with 160mm inlet (s)/ outlet in 5 different configurations. Ultra 355mm chambers in 3 different configurations with 160/110mm inlet (s) / outlet.
  • Ultra 450mm multiple inlet(s) with 110mm inlets at 45° and two 160mm inlets at 90° with main inlet / outlet in 160mm. Ultra 450mmmain inlet (s)/ outlet and 160 and 200 mm branch inlet (s).
  • Ultra 600mm with 200, 250mm inlet (s) and outlet in six different configurations
  • Ultra 1000mm manhole with 250, 315mm inlet/outlet in different configurations
  • Ultra 1200mm manhole with 315 mm inlet/outlet in seven different configurations. Ultra 1200mm manhole with 400/450mm straight through configuration is also made available

Features:

  • Great flexibility
  • Perfect hydraulic Properties
  • Great strength
  • Watertight System
  • Hygienic and Safe
  • Minimum Excavation Cost
  • Different Flow Profile Designs
  • Minimal Maintenance
  • Longer Life and Overall Economy
